Manual Rolling Shutters
The everyday shop shutter. Torsion springs carry the weight, so one person lifts it easily.
- Lowest cost per sq ft
- Made to your opening
- MS or GI laths
Get a price
Send your opening size. We reply the same day.

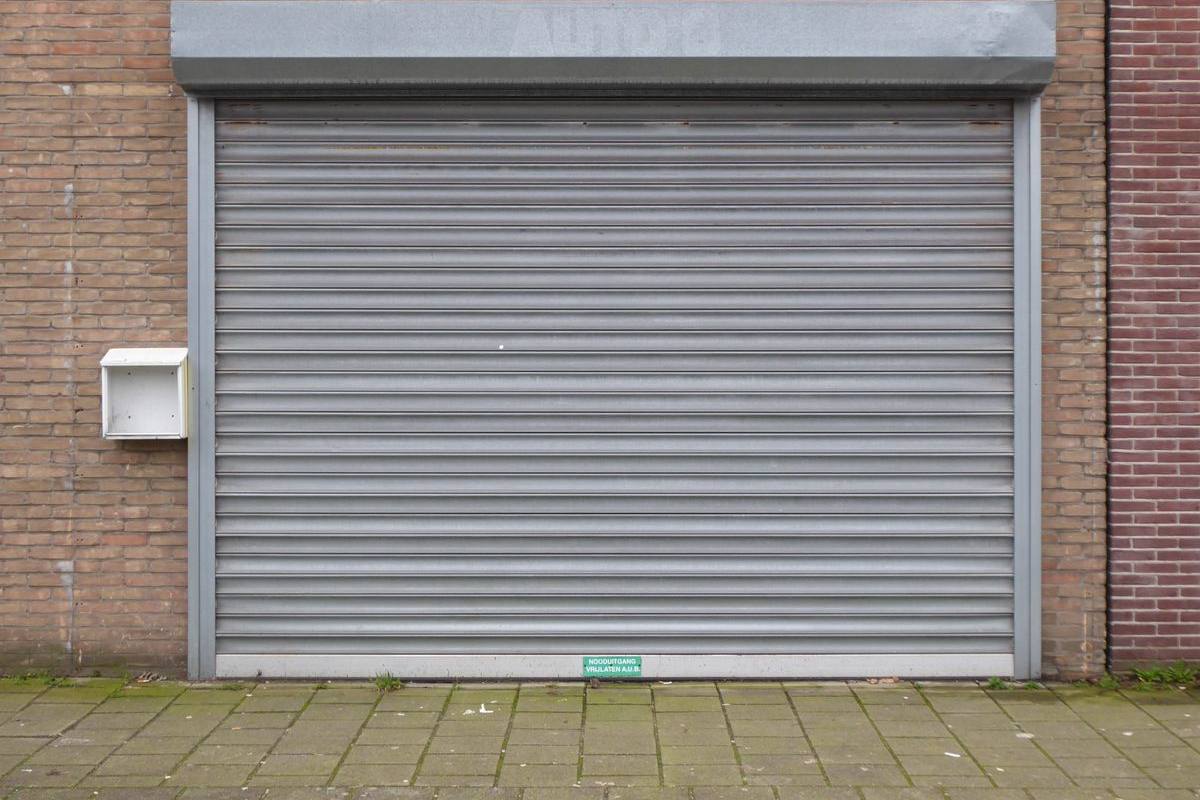

Representative photo, not this shutter's own installation.
Best for
- Shops, provision stores and pharmacies
- Openings up to about 12 ft wide
- Premises opened once or twice a day
Wider than that, or opened many times a day, and a Gear Shutters or Motorized Shutters build lasts longer.
The part cheap fabricators get wrong
Spring tension. It has to match the finished weight of your shutter, not a guess from the opening size. Set right, a 100 kg shutter lifts with one hand. Set wrong, it becomes a daily fight within two years.
Specification
| Laths | Mild steel (MS) or galvanised iron (GI) |
|---|---|
| Gauge | 18, 20 or 22, sized to the span |
| Operation | Manual pull-push, spring balanced |
| Shaft | MS pipe with torsion springs matched to weight |
| Locking | Centre lock, side locks, or both |
| Finish | Red oxide primer plus enamel, your colour |
| Typical span | Up to about 12 ft wide |
Manual Rolling Shutters — questions
How heavy is it to lift?
Set correctly, light enough for one person. If your existing shutter feels heavy, the springs have usually lost tension and can be re-tensioned rather than replaced.
What is the difference between 18, 20 and 22 gauge?
Gauge is the steel thickness, and a lower number means thicker. 18 is strongest and dents least. 22 is lightest and cheapest. We recommend a gauge for your span.
MS or GI?
MS costs less and is painted after fabrication. GI has a zinc coating that resists rust far better, which is worth it near the coast or anywhere it gets rain.
Can it be motorised later?
Often yes, if the shaft and side clearance allow. Tell us at the quote stage and we will build it to make that easier.
